Radar Interactive LED Floor Tile Screen | P3.91 TOF LiDAR Interactive Dance Floor
Our radar interactive LED floor tile screen adopts external TOF‑LiDAR radar sensing solution instead of built‑in pressure‑sensitive modules, delivering stable low‑latency interactive performance for global commercial projects. As a trusted supplier and direct factory manufacturer, YUSUN SMART focuses on B‑end wholesale and custom project cooperation, solving core pain‑points such as high failure rate, difficult maintenance and complex installation for integrators and distributors worldwide. Unlike pressure‑induction floor tiles which embed sensors inside cabinets, our external radar interactive system separates sensing hardware from LED display cabinets. This structural design greatly reduces cabinet failure rates and lowers after‑sales costs for overseas projects. Three practical installation modes are supported: direct ground mounting, track mounting and welded steel‑structure mounting. Adjustable support feet are pre‑installed on cabinet bottom as standard accessories, not separate spare brackets (read installation guide). Hardened ground surface is required for direct ground installation, all civil‑work preparation shall be finished by on‑site contractors. We supply this interactive floor display for wholesale orders and accept OEM / ODM custom requests. If you need project‑tailored technical proposal, please send email for detailed quote. Our factory also produces commercial abyss mirror, multi‑function android smart mirror and luxury LED decorative mirrors for complete visual solution matching. Reference industry technical article: LED floor tile screen technology introduction.
Product Overview

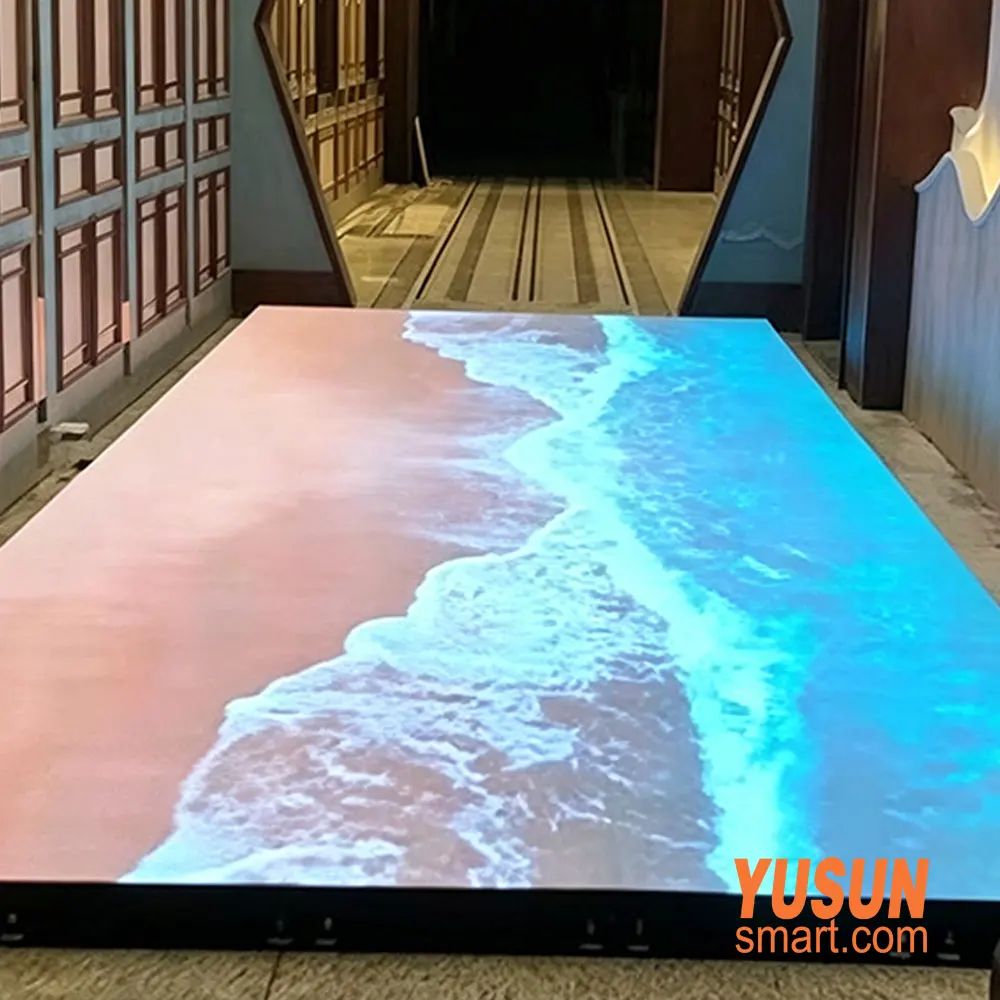

YUSUN SMART commercial radar interactive LED floor tile screen is engineered for heavy‑duty foot‑traffic scenarios. 250*250mm standard cabinet size supports seamless splicing. The external TOF radar captures human movement position in real‑time and feeds signal back to controller to trigger dynamic visual effects such as water ripple, particle flow and graphic interaction. No physical pressure trigger is needed, so interactive response keeps consistent even under dense crowd activities. This product has become a preferred option for overseas exhibitors, mall operators and event rental companies.
Key Features
- External TOF‑LiDAR radar interaction, avoid cabinet internal sensor damage, easy maintenance for overseas projects

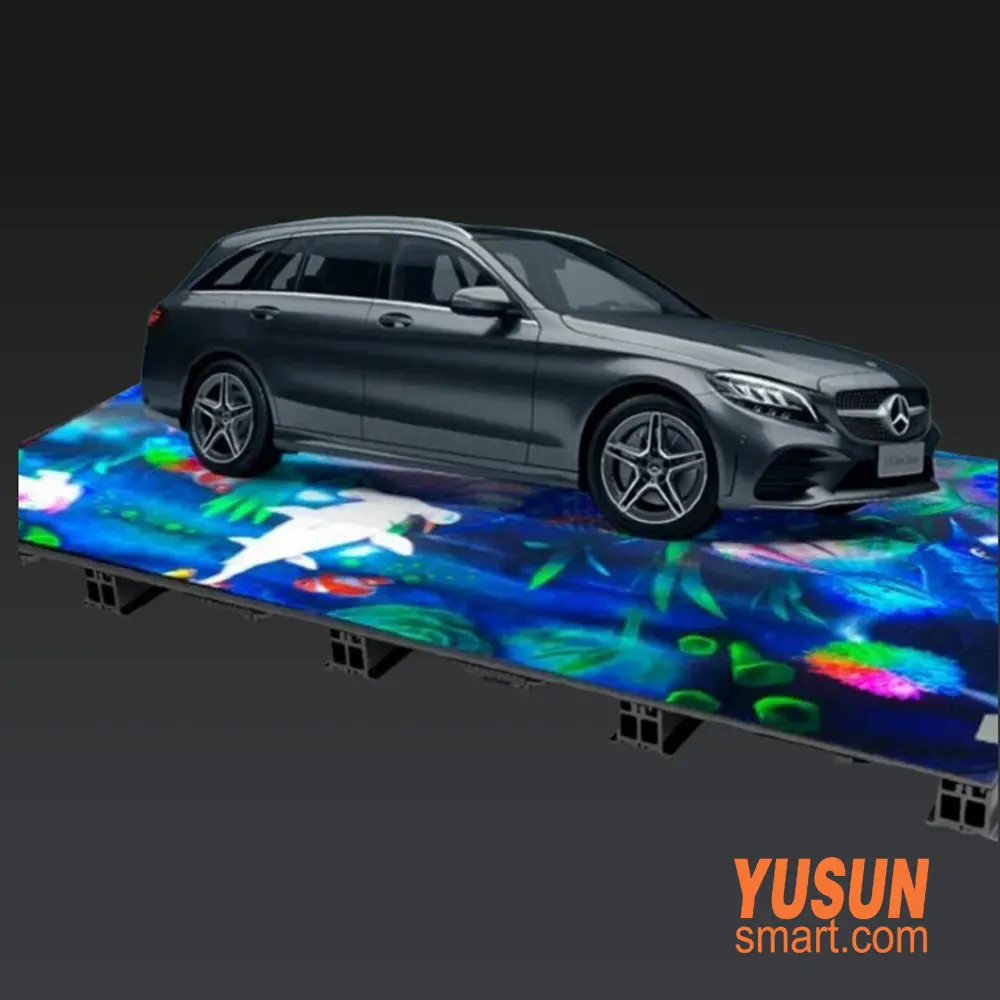

- High‑load bearing cabinet design, anti‑slip wear‑resistant surface for heavy pedestrian trampling

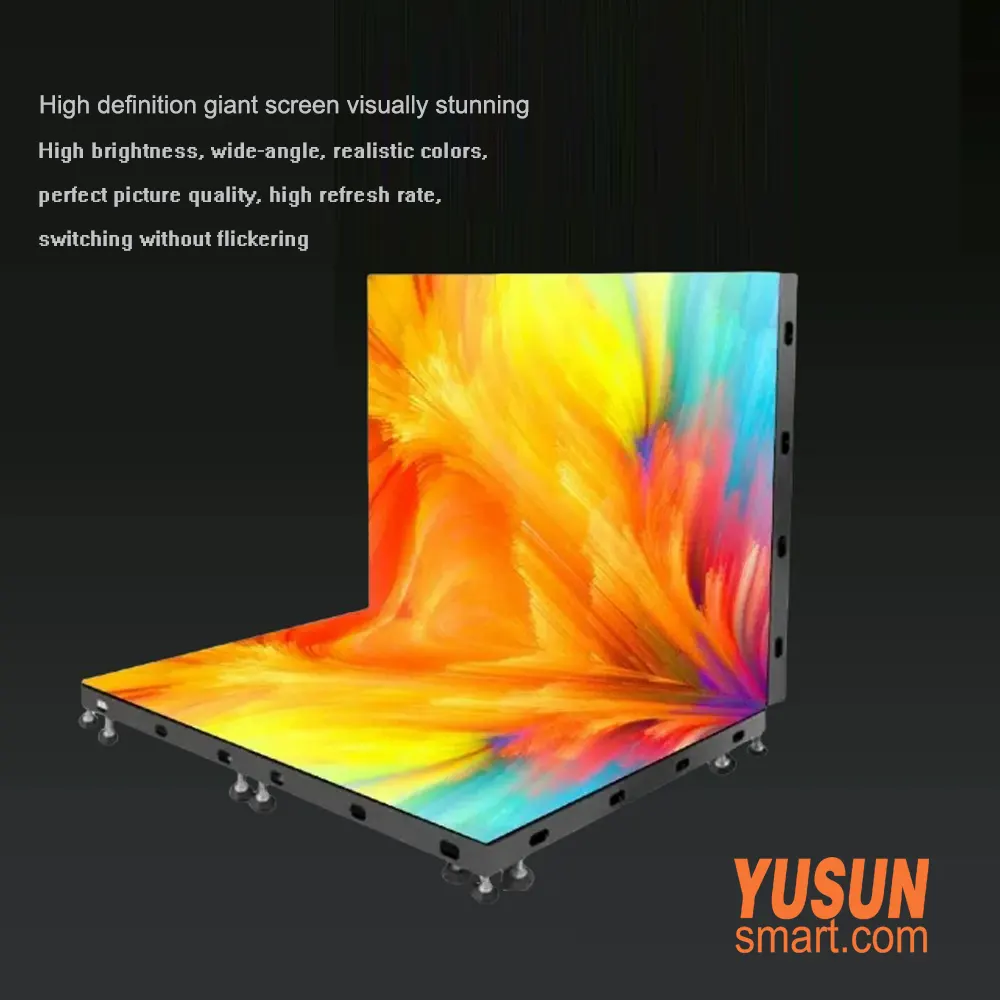

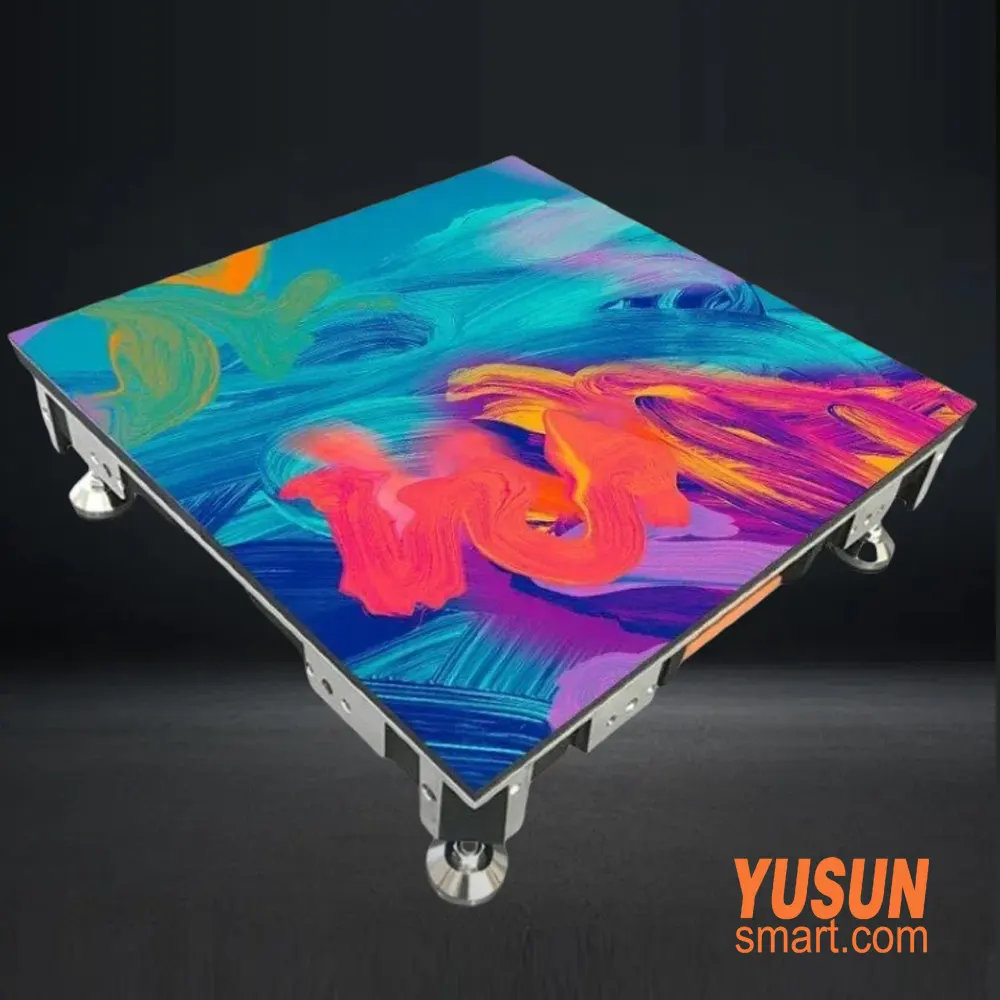

- Three installation options: direct ground, track, steel‑structure mounting; adjustable feet pre‑installed on cabinet bottom
- Standard 250×250 mm cabinet, flexible splicing for small demo area or large‑scale project site
- Low latency interactive output, stable performance for long‑hour continuous commercial operation
- Support wholesale bulk order, custom firmware, cabinet logo and project‑specific technical drawing service
Product Parameters
| Module Size | 250 × 250 mm |
| Cabinet Size | 500 × 500 mm (Standard), 1000 × 500 mm available upon custom request |

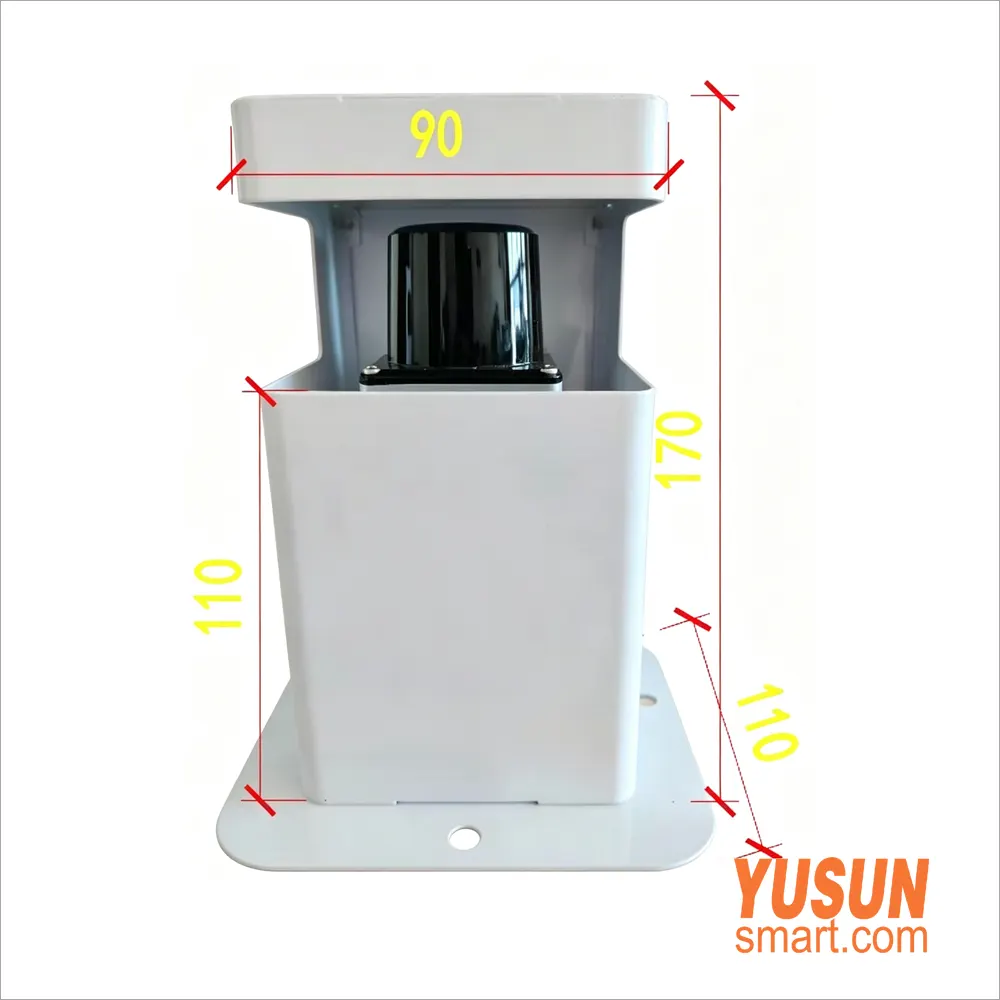

| Interactive Solution | External TOF-LiDAR Radar (no built-in pressure sensor) |
| Core Technology | External TOF LiDAR Radar — No Pressure Sensor, No Capacitive Sensor Inside the Floor Tile |
| Interaction Range | Up to 10 m Radar Scanning Radius |
| Display | P3.91 SMD1415 · 1500 nits · 3840 Hz · 65,536 dots/m² |
| Structure | Heavy-Duty Floor Tile · Up to 2 ton/m² Load-bearing Capacity · IP65 |
| Install Options | Direct Ground / Track / Welded Steel-Structure |
| Standard Included Parts | Cabinet-mounted adjustable support feet; radar & controller set |
| Optional Accessories | Guide rails, extra radar units, custom steel-structure drawing service |
| Application Environment | Indoor commercial heavy foot-traffic scenarios |
| Brand | YUSUN SMART |
Wholesale OEM / ODM Customization
As direct manufacturer, we welcome wholesale bulk orders and custom‑tailored service for global B‑end partners. Available custom items include cabinet marking, software effect adjustment, special project technical drawing and packaging customization. Please note track rails belong to optional accessories, quoted separately upon client request. Send your project dimension and requirement to our mailbox to get accurate quote. Minimum order term can be discussed for special cooperation.
Application Scenarios
- Shopping mall interactive exhibition zones
- Expo hall & museum immersive exhibition projects

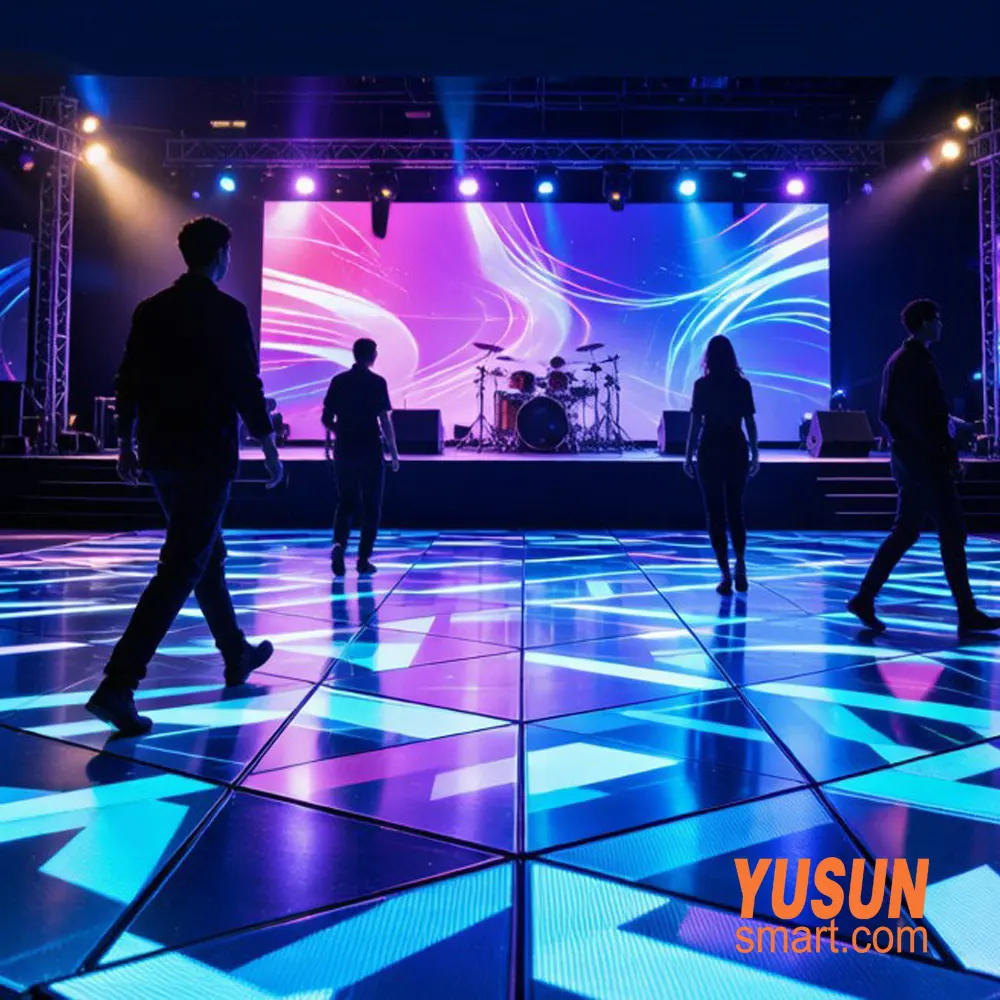

- Event rental, stage performance and theme park interactive area
- Entertainment venue, commercial experience center interactive display
Factory Advantages

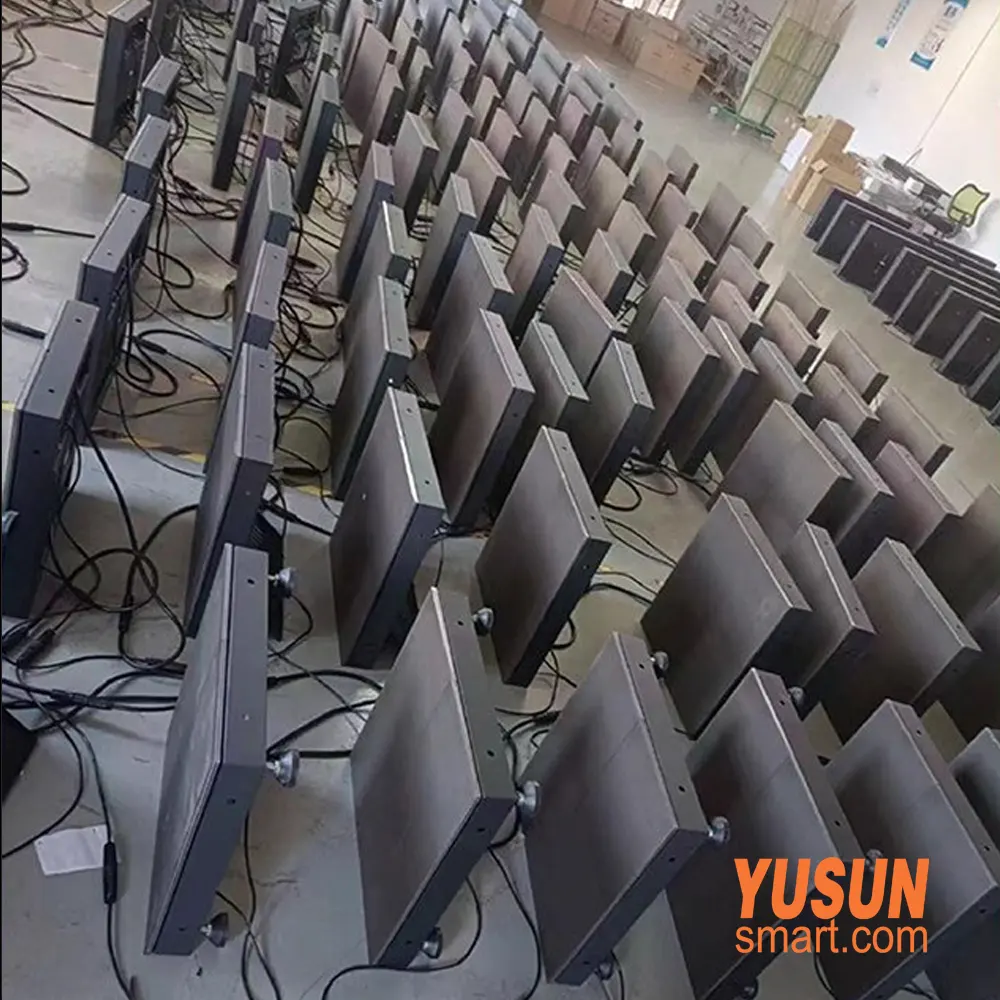

YUSUN SMART is original factory specialized in commercial visual hardware. Our product portfolio covers commercial abyss mirror, multi‑function android smart mirror and premium LED decorative mirrors. We control every production procedure internally, provide competitive factory wholesale price, stable product consistency and pre‑shipment full‑function aging test for each batch. We supply technical documentation, installation illustrations and after‑sales guidance for overseas integrators and distributors. Contact: [email protected] | Brand: YUSUN SMART
Frequently Asked Questions
- How does a radar interactive LED floor work?

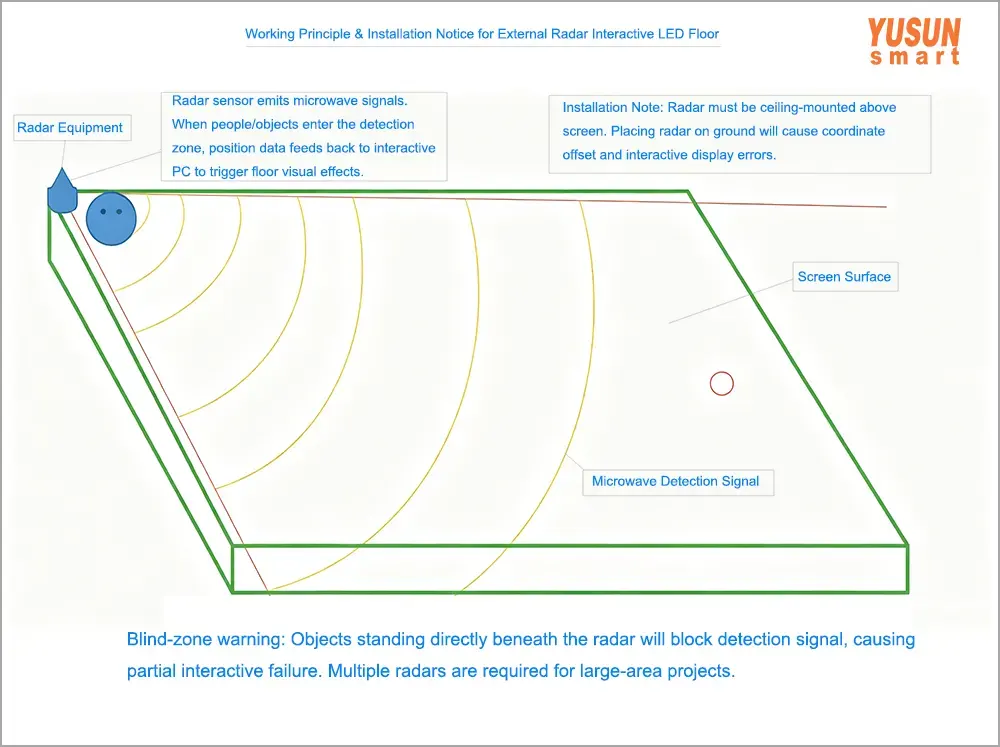

The radar interactive LED floor adopts external TOF-LiDAR radar. The overhead radar captures human movement data in real time and transmits signals to the control system, which triggers dynamic visual effects on the LED floor screen with low latency. - How does TOF radar detect people?
TOF LiDAR emits light pulses and measures the time taken for light to bounce back. It calculates real-time distance and position of people, without physical contact, and works reliably even under changing lighting conditions. - What is a radar interactive floor?

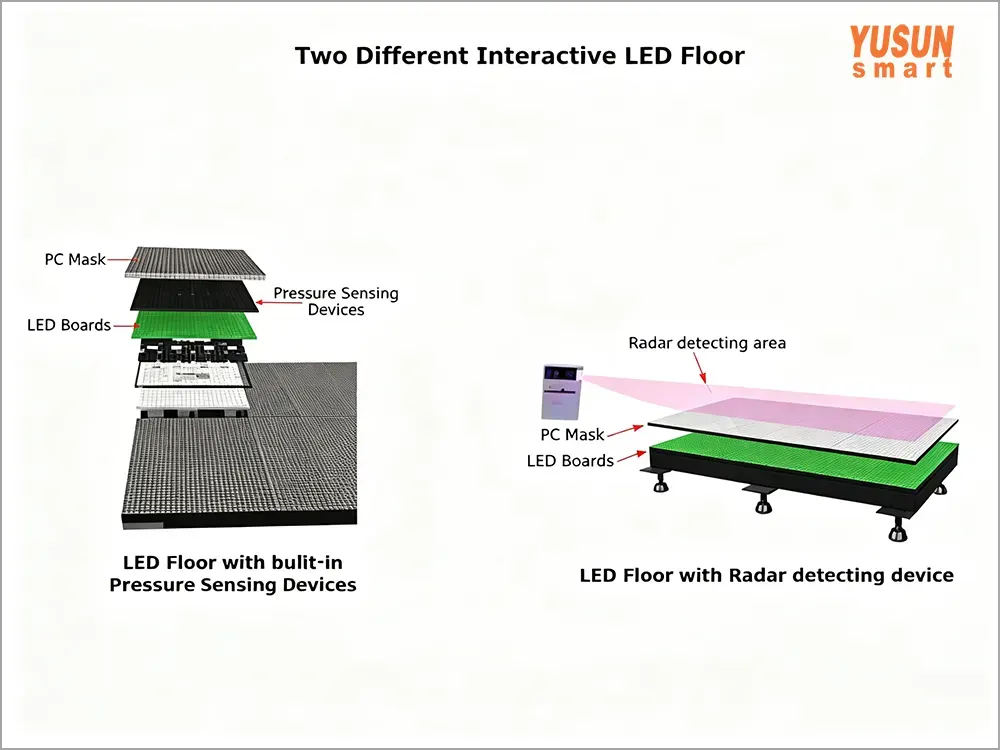

Radar interactive floor is an LED floor tile display using overhead TOF LiDAR radar for contactless interaction. No sensors built inside the floor cabinet, avoiding damage from foot pressure. - What is a touchless interactive floor?
Touchless interactive floor detects visitors without pressure sensors or physical touch. Our solution uses TOF LiDAR radar mounted above, capturing human motion to trigger real-time screen effects. - What is the difference between radar and infrared interactive floors?
TOF radar works stable in bright/dark environments, longer detection range, less affected by dust. Infrared is easily disturbed by strong light and sunlight. Our radar version has no floor-built sensors. - Can radar interactive floors be used in museums?

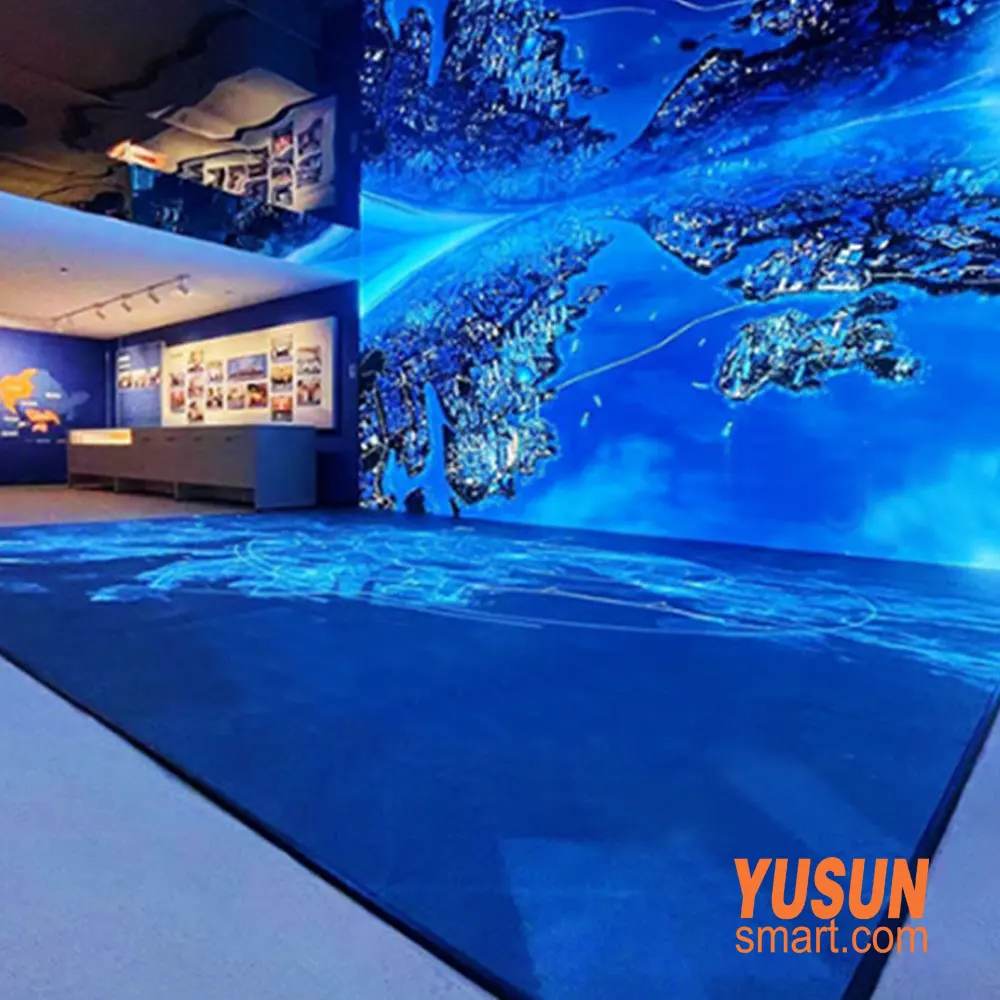

Yes. Radar interactive LED floor tiles are widely applied in museum exhibitions for immersive, touchless interactive exhibits with reliable long-term operation. - Can radar interactive floors be used in shopping malls?
Yes. It is suitable for shopping malls, exhibition halls and commercial spaces. The toughened glass surface can sustain heavy pedestrian flow for advertising and immersive games. - What is the load-bearing capacity of an interactive LED floor?
Our radar interactive LED floor uses high-strength anti-slip tempered glass. The cabinet structure supports normal pedestrian loads for commercial visitor flow. - How are interactive LED floor tiles installed?

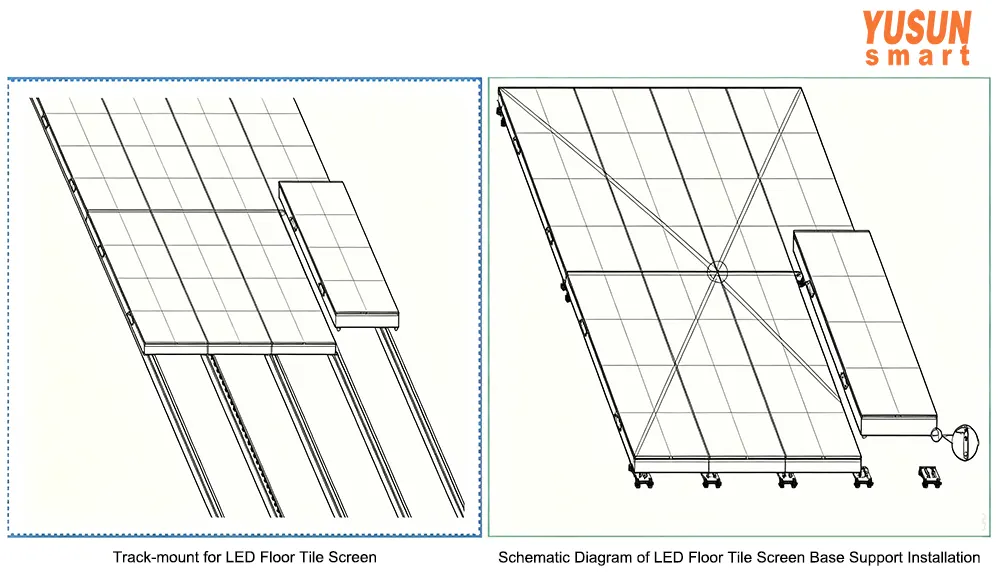

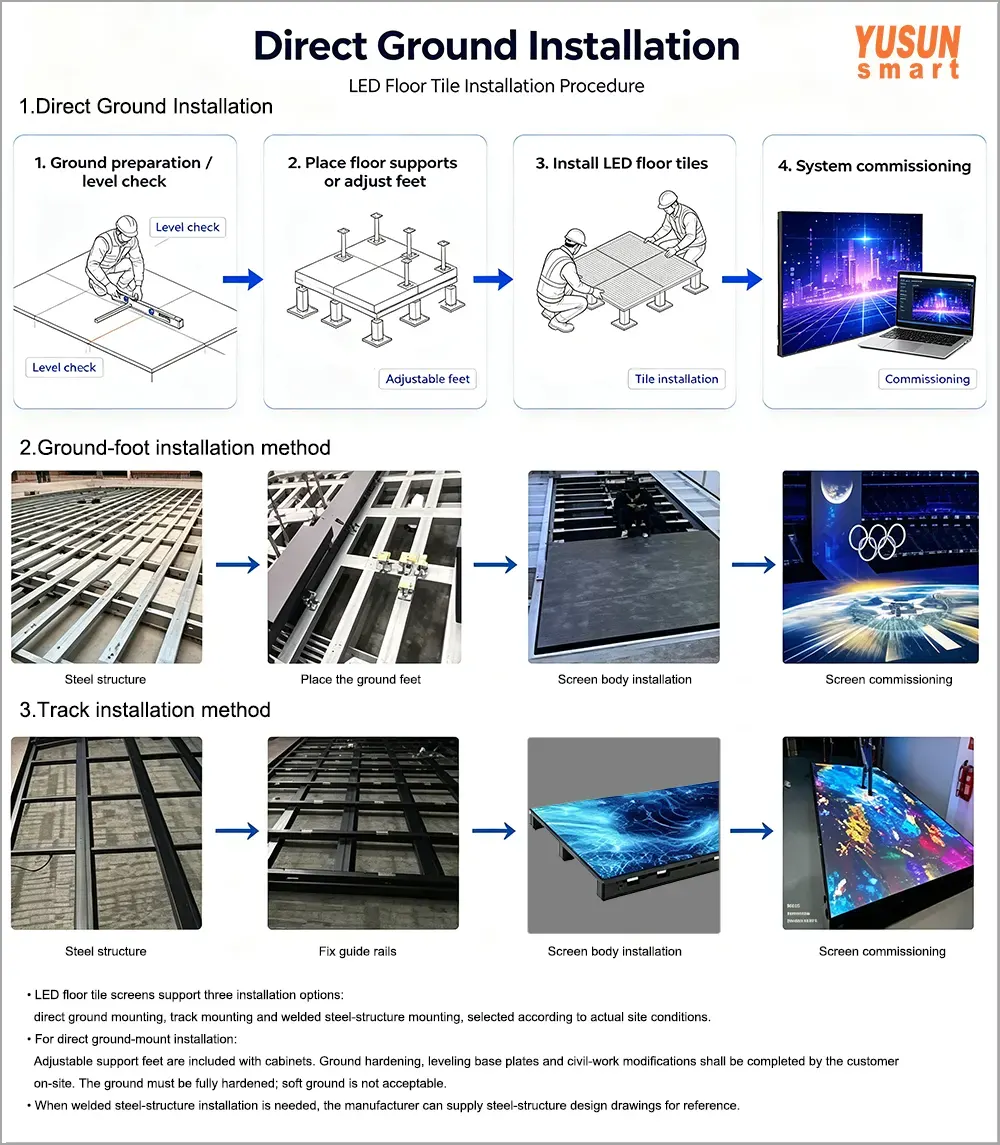

Three installation options: direct ground mounting, track mounting and welded steel-structure mounting. Adjustable support feet are included with cabinets, ground hardening required for direct ground installation. - Can multiple LED floor tiles form one interactive display?
Yes. Multiple LED floor cabinets can be spliced together to form one large continuous interactive display, controlled by the same radar and control system.
Request Quote
Please send your project information including project dimension, installation condition, target application and order volume to official consulting email: [email protected]. Our B‑end sales team will reply you with detailed wholesale offer and technical specification within 24 working hours.
