OEM & ODM MANUFACTURER

Commercial Infinity Mirror Ceiling Panels

Ultra-Lightweight & Fall-Proof Design | Standard T-Bar Grid Compatible.

Factory-Direct 3D Infinity Mirror Ceiling Systems

We supply heavy-duty, fall-proof modular infinity mirror ceiling tiles designed for nightclubs, KTVs, esports hotels, and commercial venues. Our lightweight aluminum-frame panels deliver a stunning 3D infinite tunnel effect while ensuring absolute on-site safety. All systems support DMX512, sound-active sync, and full OEM customization for global contractors.

✅ Verified Manufacturer (NOT a Trading Company)
✅ Custom Dimensions & Geometric Shapes Supported
✅ Global Shipping & Project‑Level Technical Support

Custom 3D LED Ceiling Panels for Immersive Spaces

Elevate your venue with our premium Infinity Mirror Ceiling Panels. Engineered for safe suspension, these panels feature 3C-certified tempered glass and an anti-oxidation back mirror to ensure long-term stability in high-traffic commercial environments. Featuring 15-25 visual layers, they create an authentic endless tunnel illusion. Standard sizes are compatible with common ceiling grids, and custom dimensions, geometric shapes, and integrated acoustic sound-sync are available for bulk engineering projects.

🛡️ Absolute Fall-Proof & Anti-Shatter Design
Engineered for high-traffic commercial ceilings. Our panels feature a Reinforced Aluminum Frame for structural integrity, Dual Steel Wires for redundant suspension safety, and Anti-Shatter Safety Film to ensure that even in the rare event of glass breakage, fragments remain safely in place. Zero risk to your guests below.

Premium Optical Glass Construction
Unlike standard mirrors, our ceiling panels utilize high-quality 3C-certified tempered glass with an exterior Anti-Shatter Safety Film facing the guests, ensuring maximum protection in the event of breakage. Internally, the glass is precision-coated with a semi-silvered (one-way) mirror film to achieve the flawless 15-25 layer infinite tunnel effect while maintaining optimal light transmission.

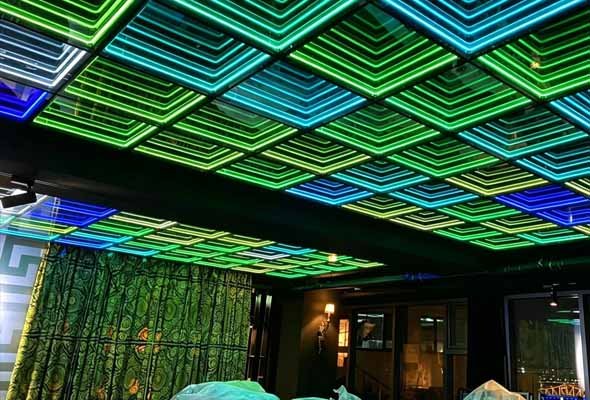

Infinity Mirror Ceiling Panels

Tile Light – Specification Sheet

Product NameInfinity Mirror Ceiling Panels Tile Light
Net Weight11KG
VoltageAC100-240V 50/60Hz
Max Power10W
Light SourceLED 5050 SMD 3-in-1
Product Size500×500×70mm
Waterproof RatingIP55
Product Material6-8mm Tempered Glass Cover + Stainless steel / Painted Iron Base
Control MethodSD Controller (Supports Remote Control, Sensor Activation, DMX, Audio, Sound Control, Auto Play, etc.)
Application ScenariosShopping Malls, Parks & Squares, Hotels, Bars, Stages, KTV, Stairs, etc.
Safety SuspensionReinforced Aluminum Frame + Dual Steel Wires + Anti-Shatter Safety Film
Glass Type3C Certified Explosion-proof Tempered Glass
Load Capacity≥ 50KG (5x Safety Factor)
InstallationCompatible with Standard T-Bar Grid

Why Choose YUSUN SMART?

Original Manufacturer

In-house production from glass processing to finished product.
Strict quality control at every stage

Professional R&D Team

Continuous innovation and support.
Custom design, new product development available.

OEM / ODM Customization

Size, shape, frame, LED light, function, packaging all customizable.

Stable Bulk Production

Advanced equipment & skilled team ensure stable quality and on-time delivery.

Global Certifications

CE, RoHS, FCC, ISO certified.
Support hotel & commercial project requirements.

Reliable After-sales

Professional team provides technical support and quick responsive after-sales service.

Frequently Asked Questions (FAQ)

How does an infinity mirror ceiling panel create the 3D tunnel effect?

Our infinity mirror ceiling panels use semi-silvered one-way glass, high-reflection back mirror and embedded 5050 RGB LED strips. Light bounces repeatedly between mirror layers to produce a realistic endless abyss visual, delivering 15–25 visual layers for immersive commercial ceiling decoration.

Are infinity mirror ceiling panels fall-proof and safe for overhead installation?

Yes. Our ceiling panels adopt a reinforced aluminum frame, dual steel redundant suspension wires and anti-shatter safety film. The glass is 3C-certified tempered glass; even if glass breaks, fragments stay attached to the safety film. The panel load capacity ≥50KG with a 5x safety factor to eliminate overhead falling risks for guests.

Can these infinity mirror ceiling tiles fit standard T-bar ceiling grid systems?

Yes. Standard 500×500mm panels are fully compatible with common T-bar ceiling grids for fast modular installation. Custom sizes and shapes are available for non-standard ceiling projects.

What control options are available for infinity mirror ceiling panel lighting?

The panels support SD controller, remote control, sensor activation, DMX512, sound-active audio sync and auto play modes. DMX and Madrix integration are available for large venue stage lighting programming.

What are the core specifications of your standard infinity mirror ceiling panels?

Standard size: 500×500×70mm; Net weight: 11KG; Power supply: AC100-240V; Max power:10W; Light source: 5050 SMD RGB LED; Waterproof rating: IP55. Constructed from 6–8mm 3C certified tempered glass + stainless steel / painted iron base.

What environments are suitable for infinity mirror ceiling panels?

IP55 rated for indoor dry commercial spaces: nightclubs, KTV, esports hotels, bars, stages, shopping malls and indoor squares. Not recommended for fully outdoor exposed environments.

Is YUSUN SMART a real manufacturer or trading company?

YUSUN SMART is a verified original manufacturer, not a trading company. We complete full in-house production from glass processing to finished panels, with in-house R&D team, strict QC and global project-level technical support.

What after-sales and technical support do you provide for ceiling panel projects?

We supply professional technical drawings, installation guidance and fast-response after-sales service. Our engineering team offers remote project support for large venue installation, DMX programming and on-site troubleshooting.

Our Manufacturing Capabilities

Advanced automated production equipment
Complete strict quality control system
Customizable packaging & private label service
Secure worldwide shipping & safe transportation

3D Infinity Mirror Ceiling Panel

Wholesale OEM/ODM Customization

We provide flexible one-stop customization services to help clients launch differentiated products and avoid homogeneous price competition:
YUSUN SMART focuses on infinite abyss mirror devices, smart home lighting and high-end mirror furniture. We support low MOQ trial orders for new partners and provide matched gift set packaging solutions to improve your terminal profit margins.
